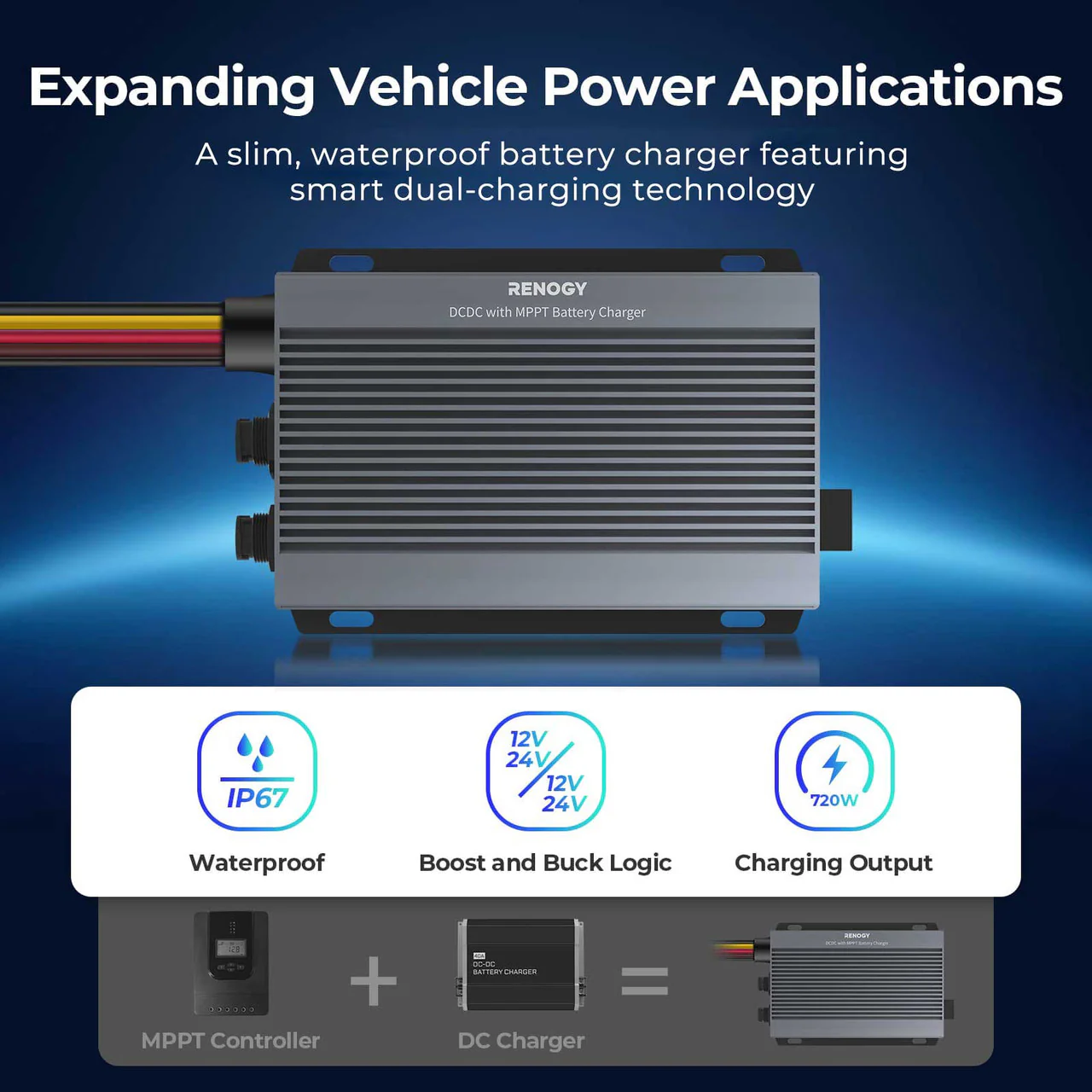

12/24V 50A IP67 DC-DC Battery Charger with MPPT
A dual charging solution with 12V/24V boost and buck logic.
Compact & lightweight with IP67 waterproof rating.
Featuring auto-switching charging mode while prioritizing green power.
CE, FCC, RoHS certified with comprehensive test reports.
Bluetooth Energy Monitoring with wired CAN communication.
Ultimate Reliability with Impeccable Efficiency
Charge your house battery while delivering a precise trickle charge to the starter battery, ensuring your vehicle starts reliably every time and your onboard systems stay powered.

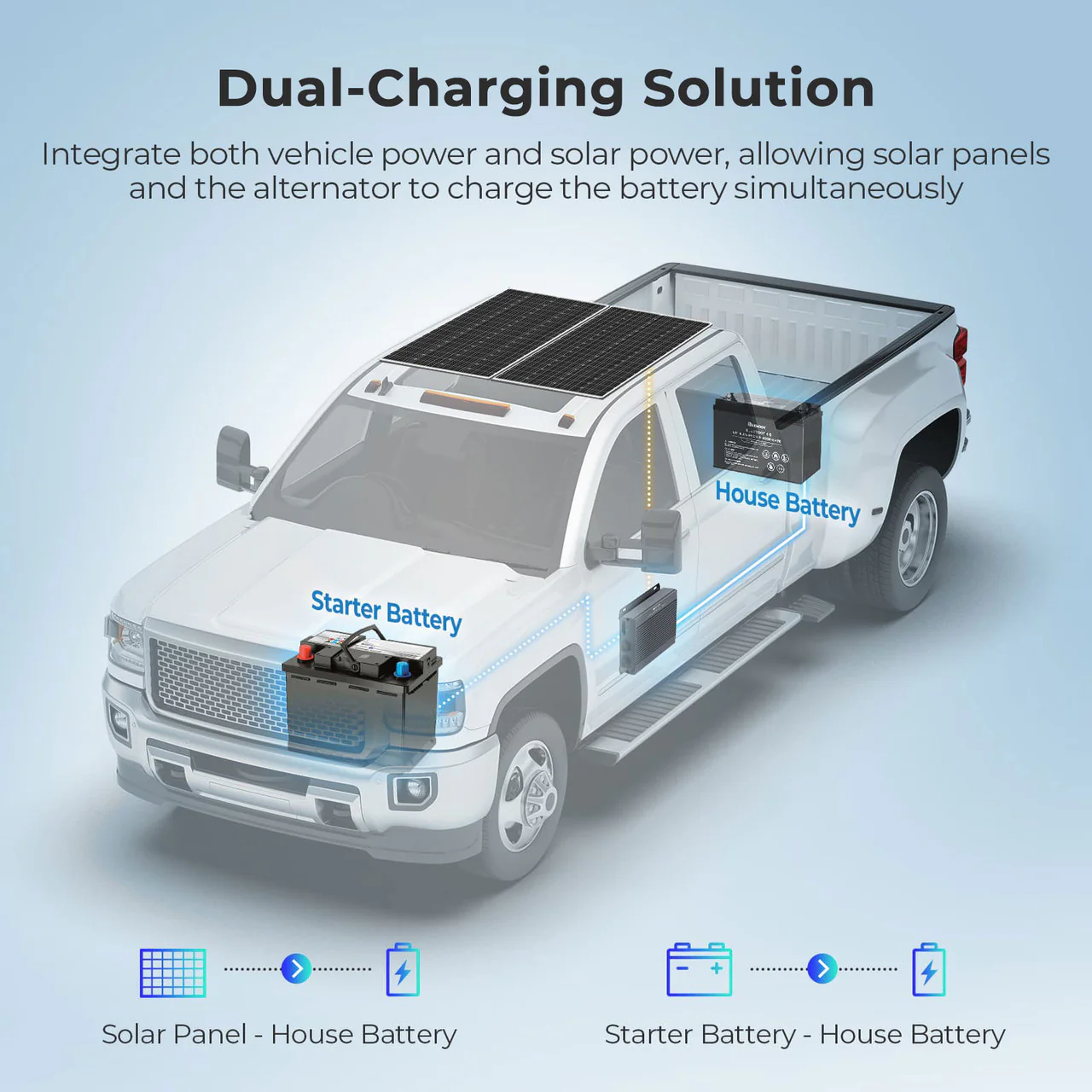

Intelligent Dual Charging Mode
Combines vehicle and solar power intelligently, automatically adjusting to sunlight intensity and driving conditions to ensure your batteries are always charged, reducing wasted energy and generator hours.
Compatible with a Wider Range of Voltage
Works with both 12V and 24V setups, so you can build now and upgrade later without replacing your charger. This flexibility makes it easier to match different vehicles, battery banks, and solar arrays, giving you more DIY options with fewer compatibility headaches.
Compact Design for Easy Installation
Slim, mountable in engine compartments or side storerooms, optimizing space for a more comfortable living area while keeping installation and maintenance accessible.
Drop-Resistant
Rugged sheet-metal casing protects the charger from accidental drops, impacts, and vibrations, ideal for off-road vehicles or mobile installations where bumps and knocks are everyday occurrences.
Temperature-Resistant
Operates flawlessly in extreme conditions from -31°F to 176°F, maintaining full-load performance even at 131°F, facilitating reliable operation in both hot and cold environments.
Water-Resistant
Fully sealed with all-around glue filling, the charger is protected against water and dust, making it safe for marine, camping, or outdoor use in wet environments.
High-Efficiency Charging
Delivers 720W output to fully charge your house battery quickly, maximizing solar and vehicle power to keep your systems running reliably during your trips.
Enhanced Charging Safety
Enjoy the benefits of multiple protections, including overvoltage, overcurrent, and temperature safeguards, for a safe, reliable charge across diverse environments and ultimate peace of mind.
Learn more![]()
Connect with Renogy customers.
Go to Power Plus Community
Still have questions?
Ask our specialist
Package Includes
- 1 x RENOGY IP67 50A DC-DC with MPPT Battery Charger
- 1 x Battery Temperature Sensor
- 1 x Quick Guide
- 4 x M8 Terminal Ring
- 1 x ST4 x 20mm Install Screw
| BASIC INFORMATION | |
|---|---|
| System Voltage: 12V/24V - 12V/24V | Input Fuse Rating: 75A-100A |
| Solar Input Voltage: 50 VDC | Output Fuse Rating: 75A-100A |
| Output Voltage: 9-32V | Conversion Efficiency: 94% |
| MPPT Charging Efficiency: 97% | MPPT Tracking Efficiency: 99% |
| Alternator Input: 9-32V | Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium) |
| Maximum Output Current Rating: 12V@50A ; 24V@25A | Idle Power Consumption:＜100mA |
| Output Power: 720W | Battery Types: AGM/SLD , GEL ,FLD ,LI,USER |
| GENERAL DATA | |
| Maximum Operating Altitude: 3500m | Enclosure Rating: IP67 |
| Terminal Range: 8AWG-4AWG | Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm |
| Communication Protocol: Modbus ; RV-C | Weight: 4.10 lb / 1.86 kg |
| Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃ | Certification: CE;RoHS;FCC Part 15 class B |
| Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃ | Warranty: 3-year material warranty |
| Humidity: 0%-95%, No Condensation | Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection |
1. What is the significance of the system voltage value of 12/24V-12/24V for IP67 chargers?
When the IP67 charger is connected to the solar panel, it can use the 12V solar panel to boost the voltage to charge the 24V Housing battery; it can use the 12V solar panel to buck the voltage to charge the 12V Housing battery. When the IP67 charger is connected to the starter battery, the 12V starter battery can be utilized to boost the voltage to charge the 24V Housing battery; the 12V starter battery can be utilized to charge the 12V Housing battery.
2. What are the solar input requirements for this charger?
(1) The charger is suitable for up to 720W solar panel. (2) The charger is compatible with up to 50V solar panel input. (3) The charger is compatible with both rigid and flexible modules.
3. What type of alternator is this charger compatible with?
The charger is compatible with smart alternators and traditional alternators, the working voltage of different alternators will be different. The product itself comes with Bluetooth communication function, you can connect to DC Home or Core via Bluetooth, and then adjust the appropriate input voltage value of the charger according to the characteristics of the working voltage of different types of alternators.
4. How do I set the battery type on this charger?
Way 1: The charger itself has a button to set the battery type, the button is next to the "Type" indicator, press it briefly to select a different battery type. Way 2: The charger itself comes with Bluetooth communication, you can connect our Core, DC Home to change the battery type.
5. How to view data without a display?
The charger itself comes with Bluetooth communication, you can connect to our Core, DC Home to view the charger's data.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
 |
 |
