Battery to Charge Controller Tray Cables for 3/8 in Lugs
Description

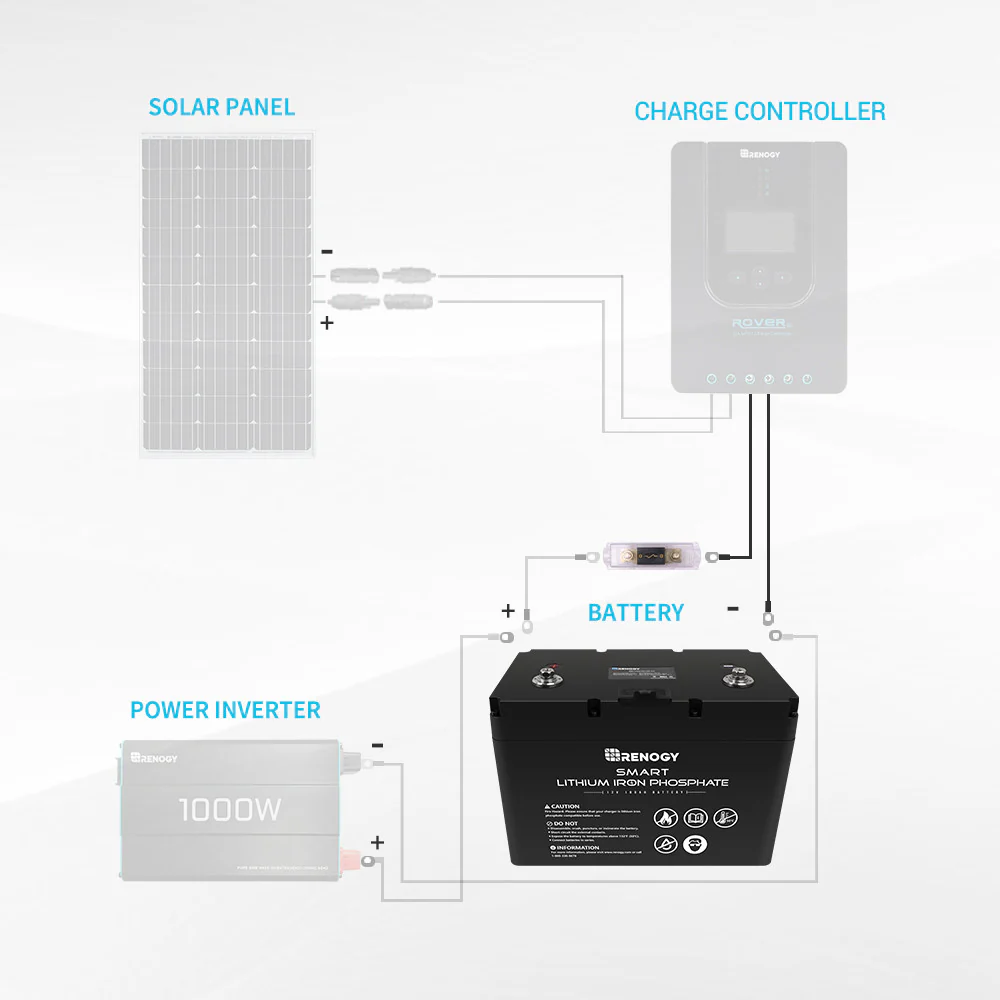

Connect your charge controller to the battery with a pair of Renogy high-quality copper tray cables. Specialized with battery rings on one end for effortless connection to your battery and exposed stranded wire on the other end to lead directly into your charge controller, this wire makes the system set up as easy as can be!
If you have any questions regarding this product, please email submit a case.
Key Features
- 【Connect the Battery and Charge Controller】Renogy offers a range of different lengths, as well as four gauge sizes to choose from. 3/8 inch round center hole.
- 【TUV LISTED】The cable meets TUV standards for PV solar application.UV resistant and waterproof. Produce optimal power output even in high-temperature conditions.

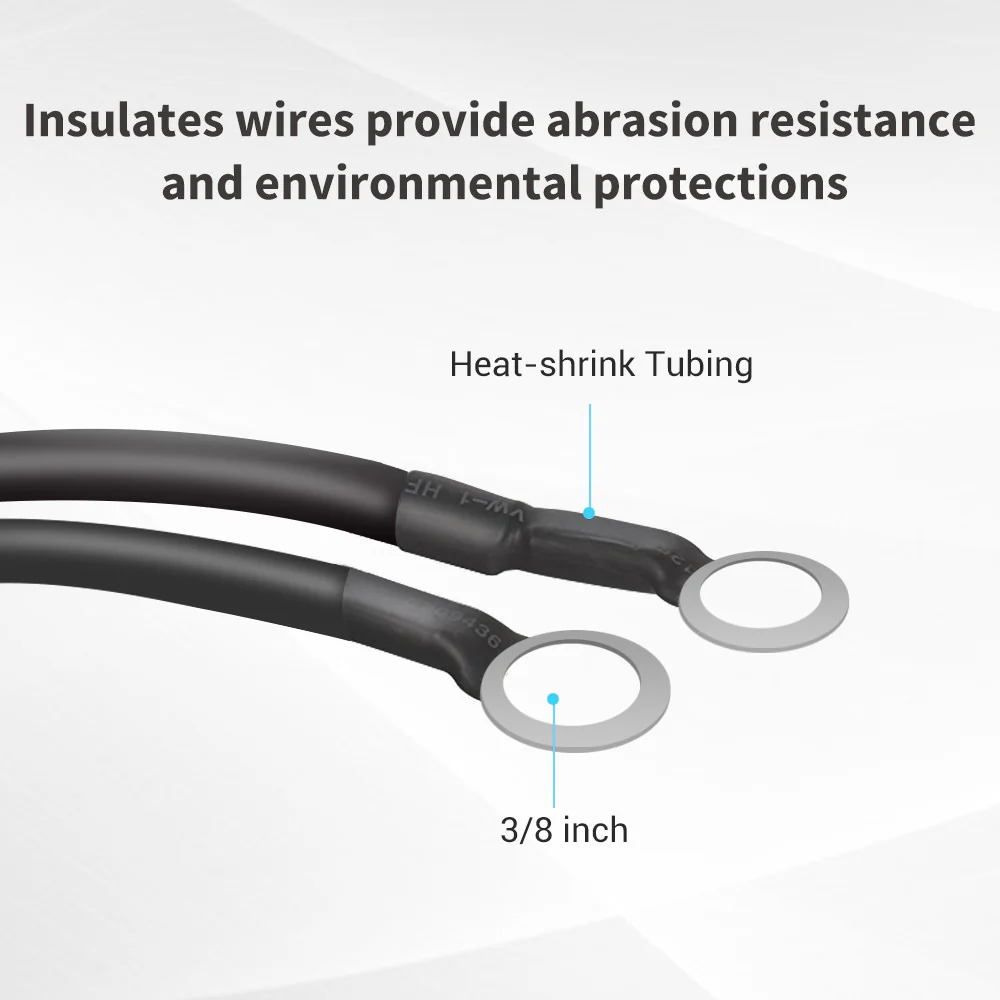

- 【RELIABLE QUALITY】Heat-shrink tubing insulates wires, provides abrasion resistance and electrical safety.

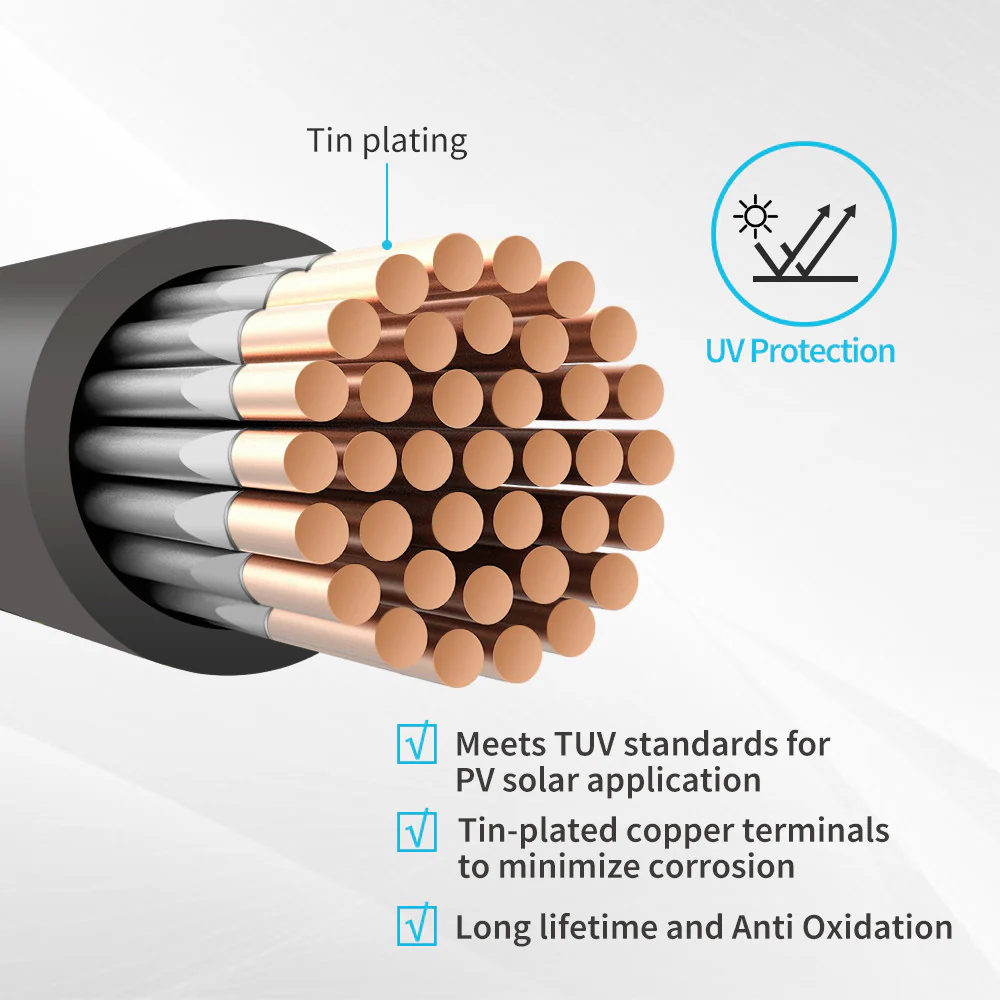

- 【PURE COPPER】Tin-plated copper terminals to minimize corrosion and the pure oxygen-free copper wiring ensures maximum conductivity.
Package Includes
|

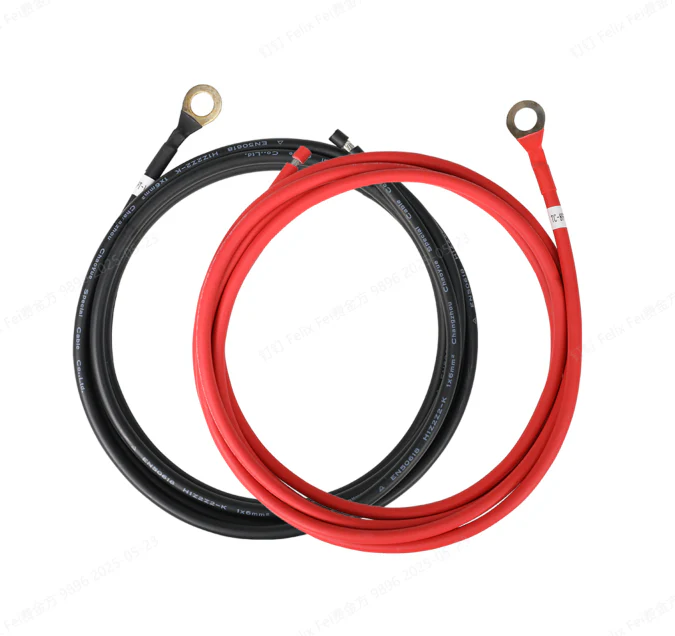

Renogy Solar Tray Cables
1 pair (2 cables)
|

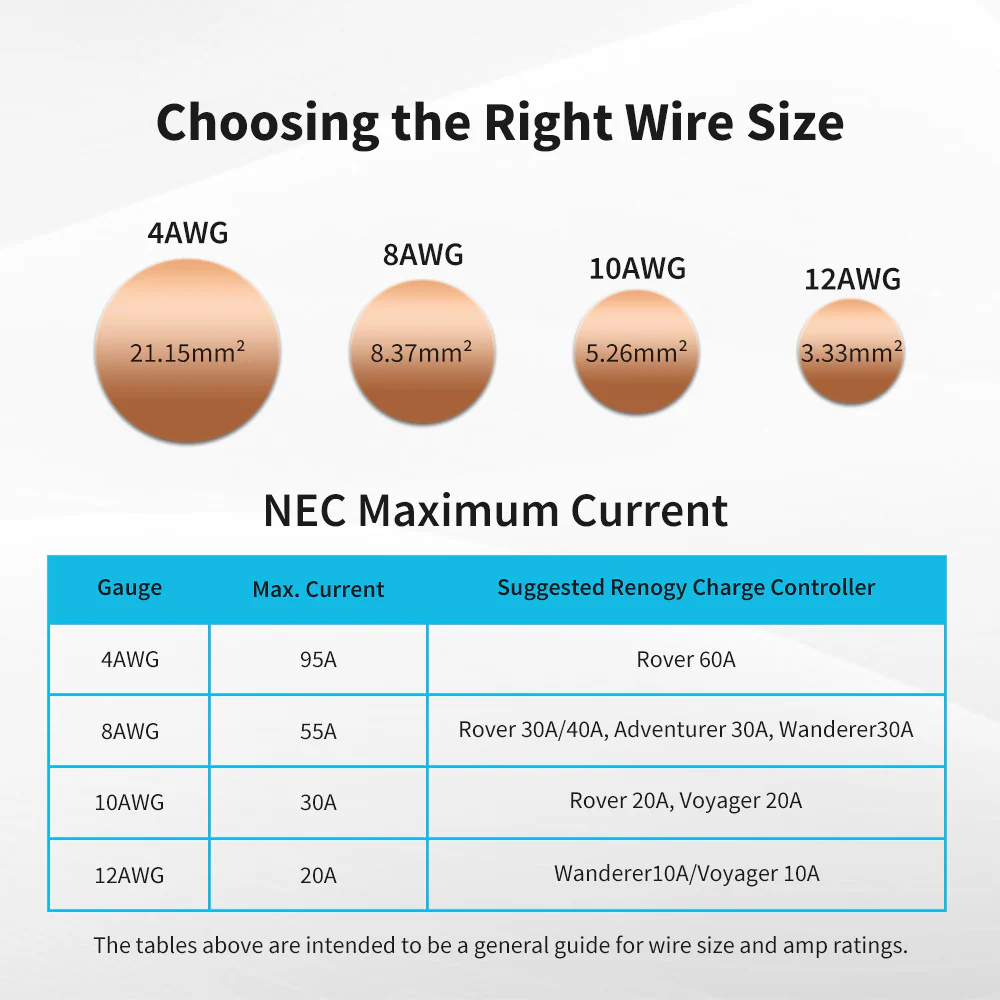

| RENOGY 4AWG WIRE COPPER SOLAR TRAY CABLES FOR CONNECTING CHARGE CONTROLLER TO BATTERY (A PAIR) | |
|---|---|
| Length: 8FT/16FT (20.3cm / 40.6cm) | Gauge (Wire Size) : 4AWG / 21.2mm² |
| Terminal Size: 3/8 in Lugs (M10) | Max. Current : 95A |
| Rating Voltage: 600/1000V/td> | Temperature : -40°F to +185°F |
| RENOGY 8AWG WIRE COPPER SOLAR TRAY CABLES FOR CONNECTING CHARGE CONTROLLER TO BATTERY (A PAIR) | |
|---|---|
| Length: 8FT/16FT (20.3cm / 40.6cm) | Gauge (Wire Size): 8AWG / 8.4mm² |
| Terminal Size: 3/8 in Lugs (M10) | Max. Current :55A |
| Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
| RENOGY 10AWG WIRE COPPER SOLAR TRAY CABLES FOR CONNECTING CHARGE CONTROLLER TO BATTERY (A PAIR) | |
|---|---|
| Length: 8FT/16FT (20.3cm / 40.6cm) | Gauge (Wire Size): 10AWG / 5.3mm² |
| Terminal Size: 3/8 in Lugs (M10) | Max. Current : 30A |
| Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
Warranty Information
| Accessories | 1-year material warranty |
 |
 |
