Refurbished Deep Cycle AGM Battery 12 Volt 200Ah
Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, the battery is maintenance-free, leak-proof, and gas-free.
Proprietary quinary alloy plates and specially treated plate grids enable outstanding discharge performance.
When not in use, the monthly self-discharge rate of this Renogy Deep Cycle AGM sealed battery is as low as 3% at 77℉ (25℃), which is 5 times lower than their flooded counterparts.
The maximum 2000A discharge (5 seconds) is suitable for appliances that require a high startup current, like a fridge.
With a consistent and stable discharge, the battery can power up most common home appliances, such as a microwave, CPAP, coffee maker, laptop, and more.
The improved electrolyte formula ensures stable battery capacity and outstanding discharge performance from -4℉ (-20℃) to 140℉ (60℃).
The battery is designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures.
You can connect up to 4 batteries in parallel to expand the power capacity to meet your needs. You can also connect multiple batteries in series.
It's recommended to connect batteries with the same type (AGM), same capacity (Ah), and same voltage (V) from the same brand.
We recommend using a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
The battery comes with two silver-plated M8 terminal bolts for cable wiring. And there are positive (+) and negative (-) icons on the container for easy wiring identification.
Built with rugged ABS container material, the battery is vibration resistant and durable.

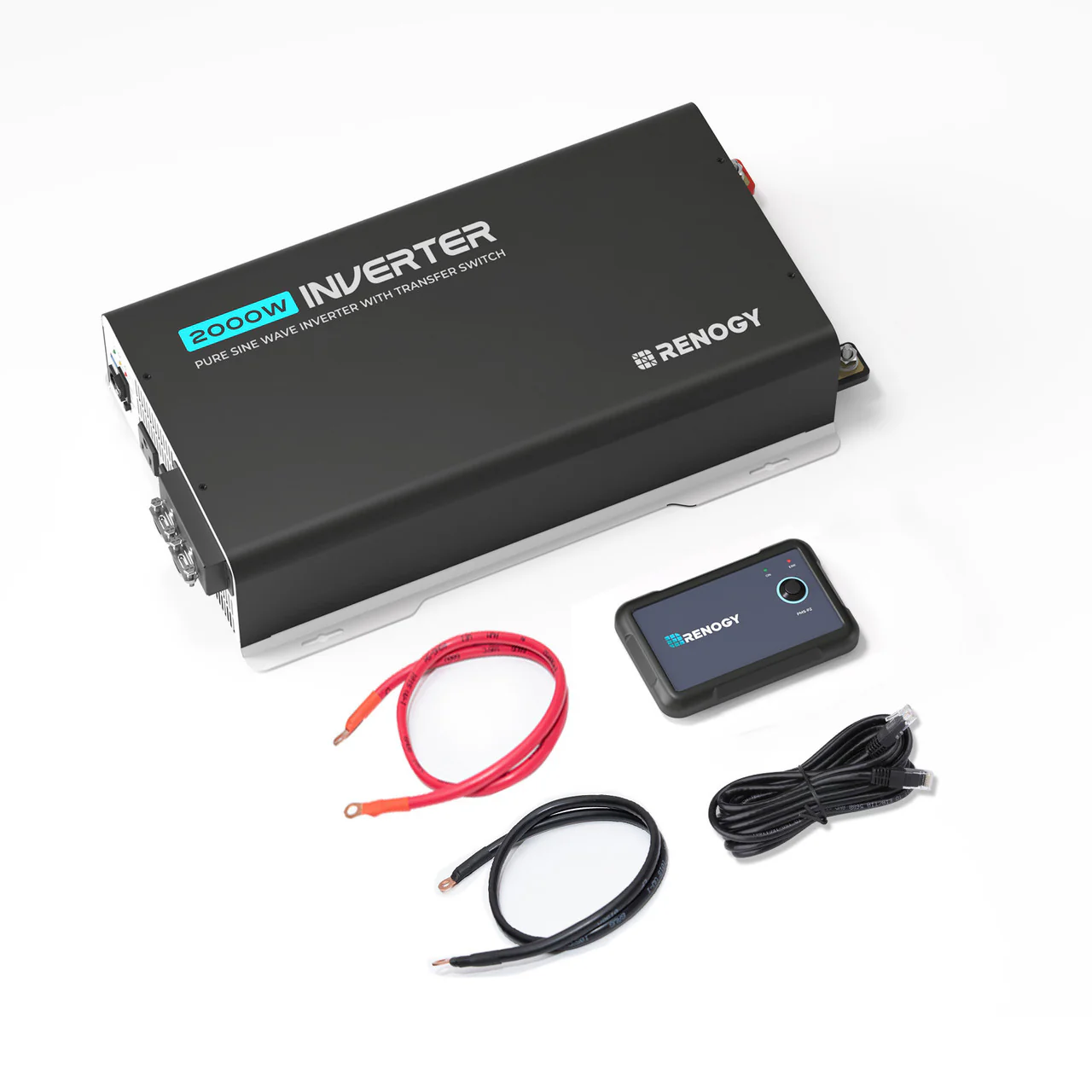

Renogy 200Ah AGM Battery works perfectly with the Renogy 2000W 12V Pure Sine Wave Inverter. The bundle is perfect for off-grid systems, whether for a van, semi-truck, 5th wheel, cabin, or any remote location needing power. The 2000W Pure Sine Wave Inverter converts DC Power stored in batteries into AC Power, allowing you to power your household appliances. The advanced Renogy pure sine wave technology will allow you to power just about any AC appliance without risk of damage to even your most sensitive equipment.
- To avoid cycle life shortening, it is recommended not to discharge the battery below 50%.
- It is highly recommended to use a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
- We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so. DO NOT install the battery upside down.
- It is recommended to connect batteries with the same type (AGM), same voltage (V), and same capacity (Ah) from the same brand.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
|
12V 200Ah Deep Cycle AGM Battery
1 x
|
Terminal Bolts (M8 x 1.25 x 15 mm)
2 x
|
| Renogy 12V 200Ah Deep Cycle AGM Battery | |||
|---|---|---|---|
| Operation Specifications | Mechanical Specifications | ||
| Rated Capacity (77°F/25℃) | 200Ah (20 Hour Rate to 10.5V) | Dimensions | 20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm |
| Rated Voltage | 12 V | Weight | 127.9 lbs / 58 kg |
| Number of Cells | 6 | Terminal Bolt Size | M8 x 1.25 x 16 mm |
| Reference Capacity (77°F/25℃) |
C3: 152.9Ah C5: 172.3Ah C10: 190.5Ah C20: 200Ah |
Normal Operating Temperature | 77°F±9°F（25°C±5°C） |
| Self-discharge Rate (77°F/25℃) | 3% / month | Operating Temperature Range | Discharge: -4~140°F/ -20°C~60°C; Charge: 32°F~122°F (0°C~50°C) |
| Float Charge Voltage (77°F/25℃) | 13.6V~13.8V; Temperature Compensation: -18mV/℃ | Storage Temperature Range | -4~140°F/ -20°C~60°C |
| Cycle Use Voltage (77°F/25℃) | 14.4V~14.8V; Temperature Compensation: -24mV/℃ | Container Material |
ABS |
| Equalization Voltage (77°F/25℃) | 14.2V | Recommended Terminal Torque | 88.5~106.2 inch·lb / 10~12 N·m |
| Max Discharging Current | 2000A (5 seconds) | Certification | |
| Max Charging Current | 60A | MSDS | YES |
| Internal Resistance | Approx. 3.5mΩ | Accessories | |
| Connection Method | In Series, and In Parallel (up to 4) | M8 Bolts | *2 |
| Warranty and Return | |||
| No refunds or exchanges for items without quality issues, with a 6-month warranty. | |||
1. Do they come with the terminal bolts? if not what size do they take?
2. Can I connect batteries in series and in parallel?
3. Can I connect a 100 Ah battery to a 200 Ah battery?
4. What's the best way to place and store this battery?
5. Can I discharge the battery to 0% and then recharge it again?
6. I will go to live in my forest cabin during the winter holiday. So I want to know that can this battery be used at freezing temperatures?
7. When using a charge controller, which battery type should I set?
 |
 |
